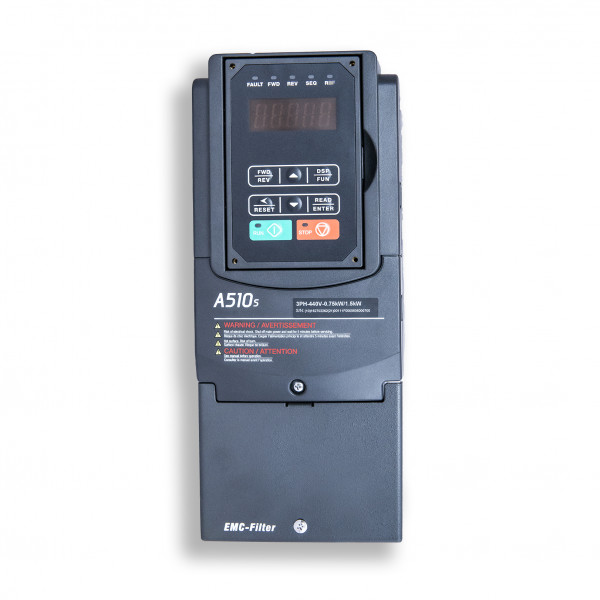

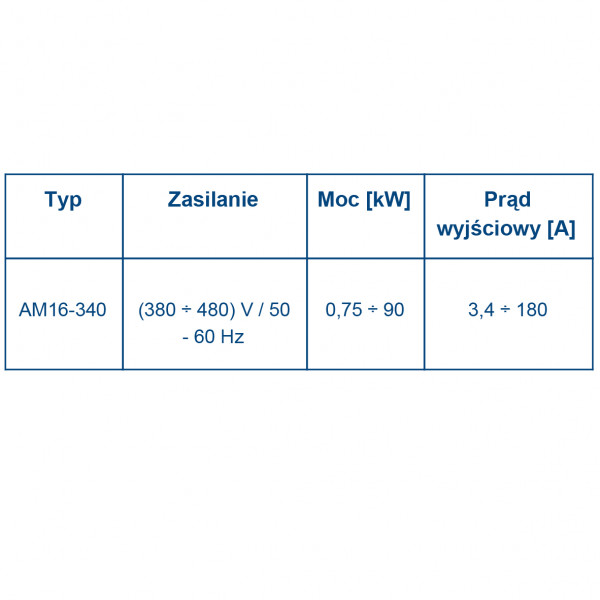

The A510s series (formerly AM16) is available in a wide power range from 0.75 kW to 90 kW with a 3ph 400 V power supply and is available in 6 different casing’s sizes.
Attachments
Archimedes-Ulotka sprzedaży wiązanej FALOWNIK+SILNIK.pdf Archimedes-Broszura-Przemienniki częstotliwości-PL-2017.pdf Motovario-Dokumentacja techniczna AM16-2017-EN.pdf Motovario-Oprogramowanie konfiguracyjne LM16 AM16 EM16-EN.pdf TECO-Katalog-Przemienniki częstotliwości seria A510s-EN-2019-REV0.pdfThe A510s series (formerly AM16) is available in a wide power range from 0.75 kW to 90 kW with a 3ph 400 V power supply and is available in 6 different casing’s sizes.
The A510s features advanced vector control for high dynamic applications with significant torque overloads of up to 200%. Motovario’s inverter is used in cranes, elevators, drills, presses, reels, spinning machines.
Starting torque at 0 Hz: 200%.
The A510s series is equipped with advanced algorithms for speed and torque control, allowing control of both asynchronous induction motors (IM) and synchronous permanent magnet motors (PM) with open loop control and feedback mode. To help the user choose the motor control mode most suitable for the application, the A510s series provides a range of macro applications. All versions have integrated PLC functions and ladder language programming mode, fully compliant with IEC 61131.
Other parameters:
- closed loop vector control,
- control of permanent magnet motors (PM)
- autotuning
- 200% of rated torque at 0 Hz
- 20% braking torque without additional resistors, 100% with optional resistors
- integrated braking transistor in versions up to 30kW
- RS485 interface Modbus RS485 via RJ45
- PC software
- 3 types of PWM modulation available
- 8 multifunctional inputs
- 4 multifunctional outputs
- programmable relay
- input and output phase loss’ control
- automatic adjustment of modulation frequency according to temperature
- password protection of parameters
- 7 application templates available: pumps, fans, conveyors, cranes, compressors, lifting, HVAC
- 16 programmable fixed speeds
- 16 acceleration/deceleration ramps for each set speed
- 16 programmable speed of cycle sequences
- internal PLC functions with ladder language (timers, counters, comparators, …)
- PID controller, whose values can be monitored on the display
- electromechanical logic of brake control
- controlled stopping of the motor without power
- energy-saving function
A version of the motor integrated in the DRIVON inverter by Motovario is also available – check it out!
