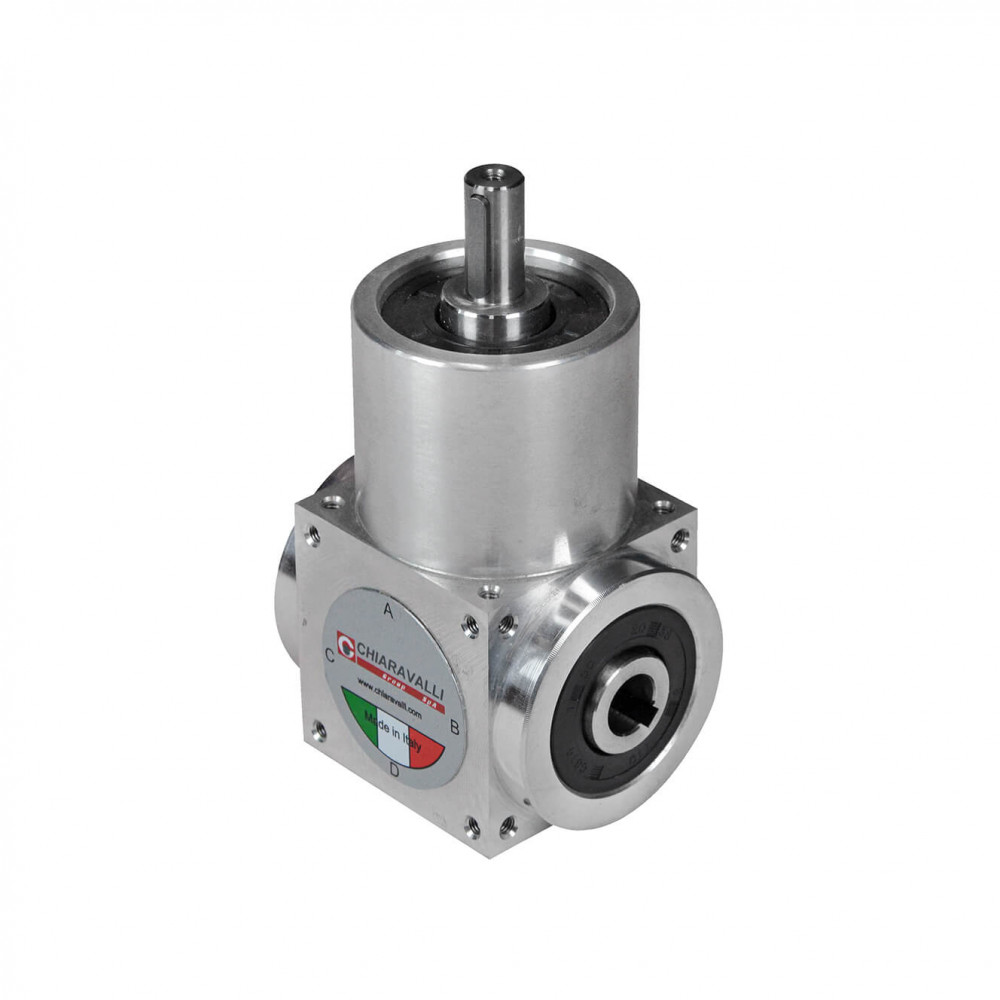

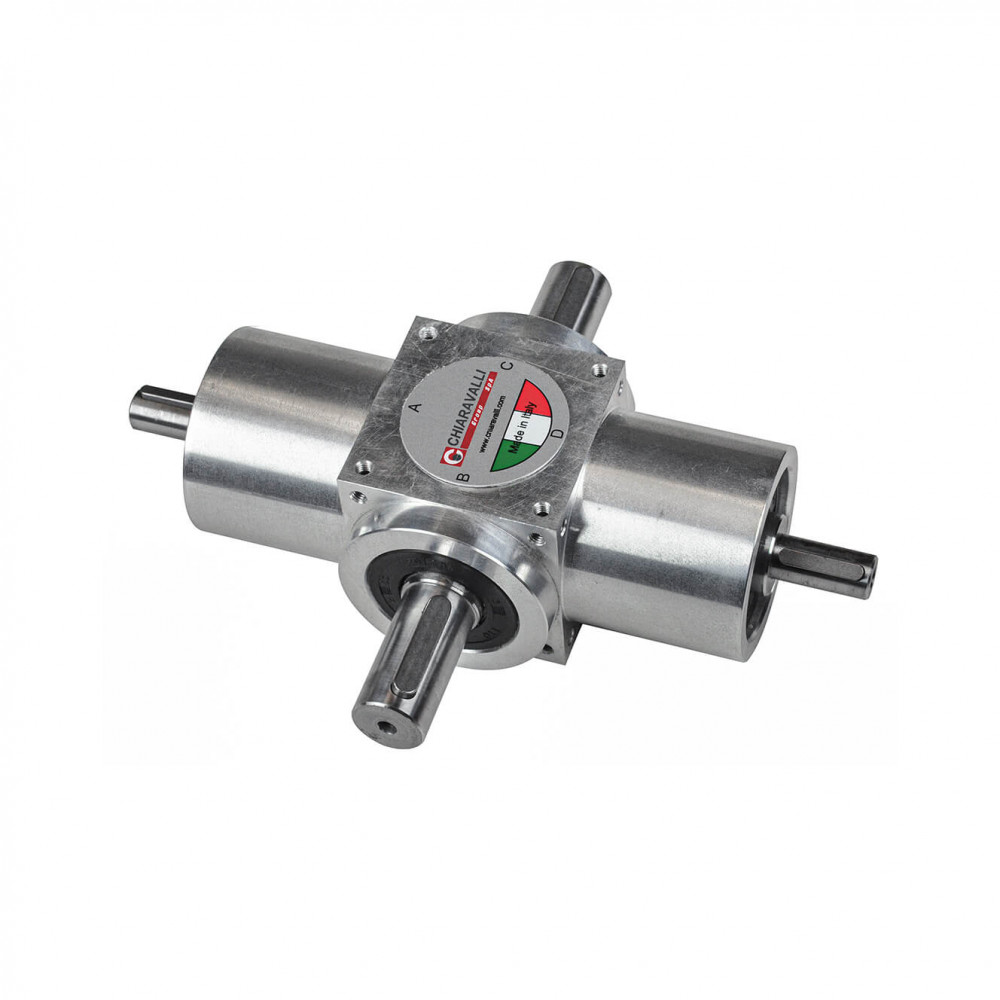

The angular gearbox consists of two bevel wheels and is used to change the direction of transmission and to reduce rotation.
The angular gearbox consists of two bevel wheels and is used to change the direction of transmission and to reduce rotation. This type of gearbox is characterized by high efficiency and high power transmission with small drive sizes up to 10 kW.1
Chiaravalli angular gearboxes are marked CHT-RB, CHT-RP
Due to the design, we have ratios from I= 1:1 to I= 1:3.
Angular gearboxes are manufactured in the following configurations:
- output with solid shaft with a keyway (one or both sides)
- input with hollow shaft with a multi-keyway,
- input with full shaft with a keyway,
- with flange connection for IEC motors.
