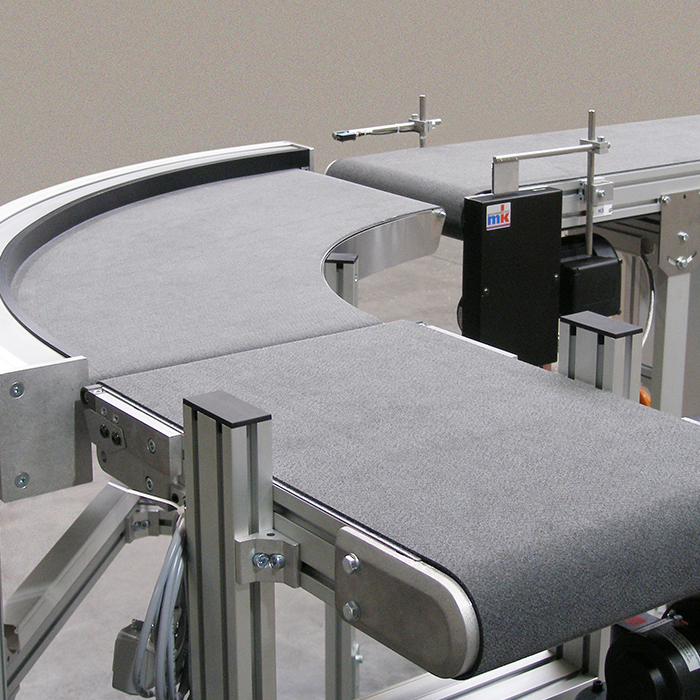

Belt conveyors are the widest and most commonly used group of conveyors.
Belt conveyors are the widest and most commonly used group of conveyors.
Conveyor frames are made of MK’s system of aluminium profiles with T-grooves compatible with other profiles. Thanks to this, it is easy to adjust the conveyors to the construction of machines and expand them with further accessories.
Drive and reversing rollers are convex as standard for easy and safe belt guidance.
Several drive variants provide many possibilities of conveyor application.
Optional rubberized rollers provide a secure transfer of the drive to the belt, even in versions with a „nose” or „wedge”.
GUF-P MINI
The smallest of the available conveyors. The frame has bottom guide bands, so that the conveyor can be directly positioned on a flat surface without being supported by stands.
- width: 75mm, 100mm and 150mm;
- length: from 360 to 5000mm.
GUF-P 2000
The most versatile belt conveyor due to the available configurations.
- width: from 50 to 800 mm ;
- length: from 380 to 10000 mm.
GUF-P 2041
Medium sized conveyor with larger dimensions and load capacity than the GUF-P 2000. It has the option of being driven via a drum motor, making it very compact.
- width: from 200 mm to 1200 mm (every 100 mm);
- length: from 540 mm to 10000 mm.
GUF-P 2045
Elektroroller driven conveyor designed for installation in applications with limited space.
- widths: 275, 300, 350, 400 and 500 mm;
- length: from 600 mm to 2500 mm.
GUF-P 2004
The heaviest and largest conveyor belt.
- width: from 200 mm to 2000 mm (every 100 mm);
- length: from 720 mm to 20000 mm.
DGF-P 2001
Double-belt conveyor designed to transport pallets or other objects of regular shape.
- width: 100, 125, 150, 175, 200 and 250 mm;
- length: from 300 mm to 20000 mm.
