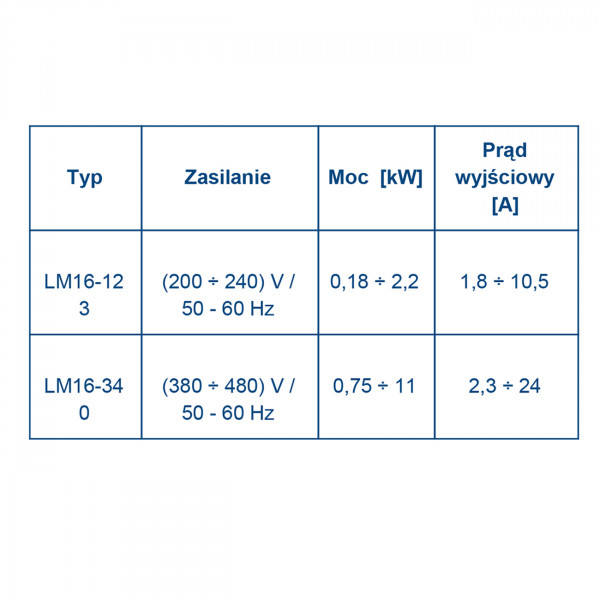

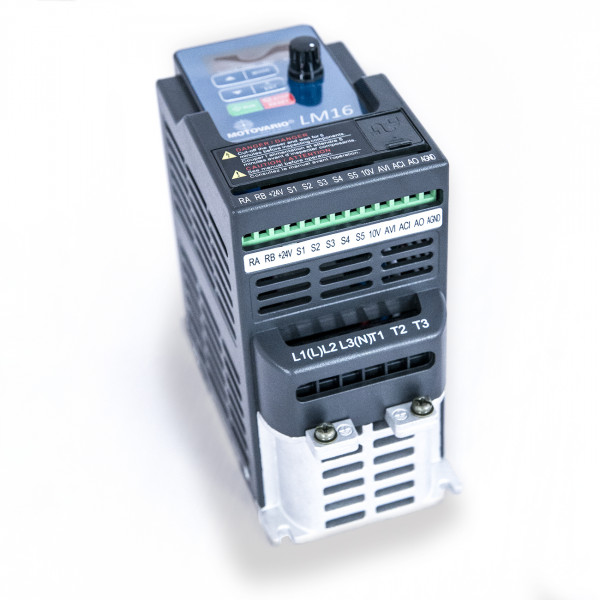

The L510s (formerly LM16) series of frequency inverters from TECO (Motovario Group) is designed to control asynchronous cage motors and is available with both single-phase (1ph) and three-phase (3ph) power supply.
Attachments
Archimedes-Instrukcja-Skrócona instrukcja obsługi falownika Motovario LM16-PL-2018-09.pdf Archimedes-Ulotka sprzedaży wiązanej FALOWNIK+SILNIK.pdf Archimedes-Broszura-Przemienniki częstotliwości-PL-2017.pdf Motovario-Karta aplikacyjna-Falownik LM16 3 wire-PL-2017.pdf Motovario-Karta aplikacyjna LM16 sekwencer-2017-PL.pdf Motovario-Karta aplikacyjna LM16 PID-2017-PL.pdf Motovario-Karta aplikacyjna LM16 IO-2017-PL.pdf Motovario-Dokumentacja techniczna LM16-2017-EN.pdf TECO-Katalog-Przemienniki częstotliwości seria L510s-EN-2019-REV0.pdf Motovario-Oprogramowanie konfiguracyjne LM16 AM16 EM16-EN.pdfThe L510s (formerly LM16) series of frequency inverters from TECO (Motovario Group) is designed to control asynchronous cage motors and is available with both single-phase (1ph) and three-phase (3ph) power supply.
It is equipped with scalar motor’s control with advanced slip compensation functions. The L510s has a compact structure, making it particularly suitable for intuitive use in low dynamic and simple control applications.

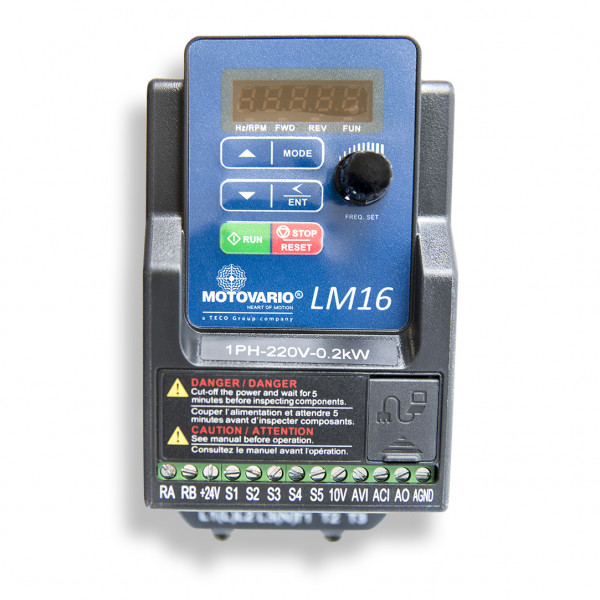

A panel keypad or potentiometer allows easy motor speed adjustment. The integrated Modbus communication interface allows for networked use of the inverter not only during programming.
Other parameters:
- 150% torque at 3 Hz
- 20% braking torque without additional resistors
- RS485 interface Modbus RS485 via RJ45
- PC software
- integrated PID controller
- motor phase loss’ control
- removable integrated EMI filter
- integrated braking transistor on 3ph 400V models
- 3 types of control V / f
- parameter’s lock with password
- programmable speed of cyclic sequences
- 8 programmable fixed speeds
- electromechanical logic of brake control
- S-Rampy
- automatic adjustment of modulation frequency according to temperature
A version of the motor integrated in the DRIVON inverter by Motovario is also available – check it out!
